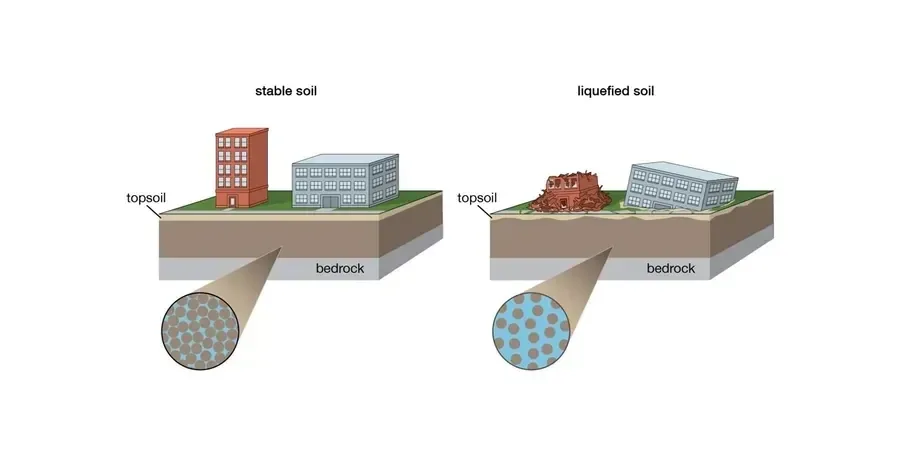

Seismic site assessment in Christchurch is a critical first step for any development, shaped directly by the Canterbury earthquake sequence of 2010–2011. Our investigations focus on quantifying ground behaviour under earthquake loading, addressing liquefaction susceptibility, lateral spreading potential, and site-specific spectral response. The subsurface here is dominated by Holocene alluvial gravels, sands, and silts of the Waimakariri River floodplain, overlying deeper Riccarton Gravel formations. Interbedded loose, saturated sands within the Christchurch Formation remain highly vulnerable to cyclic softening, a lesson etched into the city's rebuilding framework. We align every programme with the MBIE guidance and the New Zealand Geotechnical Society’s Module 1 and Module 3, ensuring compliance with the Canterbury Geotechnical Database protocols. Understanding this layered geology through targeted investigation is essential, often beginning with CPT (Cone Penetration Test) logging to capture high-resolution soil behaviour type and pore pressure data.

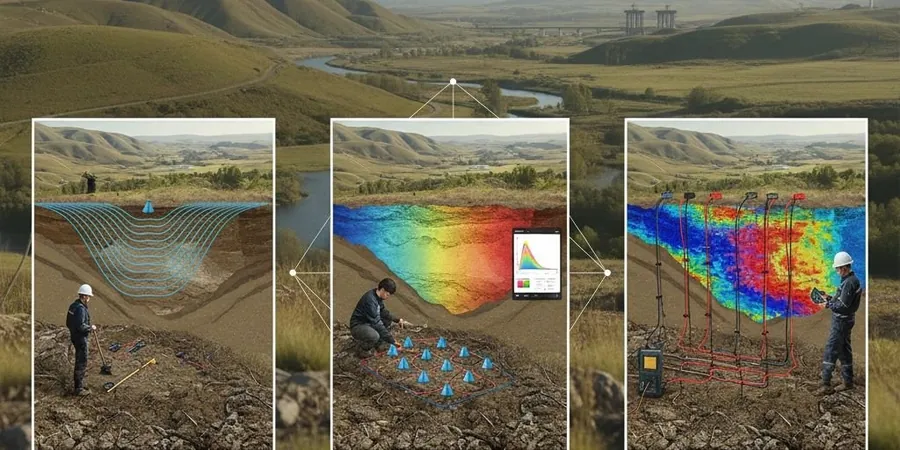

Our methodology is built entirely around New Zealand Standards, primarily NZS 1170.5 for seismic actions and the NZGS guidelines for liquefaction triggering analysis. We move beyond generic assessments by applying Canterbury-specific correction factors and regionally calibrated empirical relationships, such as the Boulanger and Idriss (2014) procedure adapted for local fines content. Fieldwork relies heavily on direct push In-Situ, combining seismic CPT with shear wave velocity (Vs) profiling to derive rigorous small-strain stiffness values. Where cyclic triaxial or resonant column testing is required, we complement this with high-quality laboratory testing on undisturbed samples. A core component involves grain size analysis, running both sieve and hydrometer tests to accurately determine the fines content and particle size distribution, which are first-order controls on liquefaction resistance. We also determine Atterberg limits to identify the plasticity characteristics of fine-grained layers, distinguishing between clay-like and sand-like behaviour for robust seismic classification.
Typical projects across Christchurch demand this detailed approach, from post-quake residential rebuilds in TC3 land zones to major commercial structures in the Central Business District. We routinely execute assessments for multi-storey buildings where shallow foundations must bridge liquefiable crusts, and for critical infrastructure requiring specific performance criteria. Field density control during Improvement works, such as stone columns or rapid impact compaction, frequently employs the sand cone method to verify compaction specifications. We also support lifelines projects, assessing buried pipeline resilience against lateral spreading across the eastern suburbs. Each project, whether a single dwelling or a large-scale subdivision, requires a tailored ground investigation that directly informs the geotechnical design parameters for settlement, bearing capacity degradation, and kinematic soil-structure interaction.
The deliverable is a comprehensive seismic geotechnical report integrating field data, laboratory results, and advanced numerical analysis. We provide clear, actionable parameters including post-liquefaction reconsolidation settlements, cyclic stress ratios, and site subsoil classifications per NZS 1170.5. Our value lies in translating complex ground response into practical foundation recommendations and Improvement strategies, de-risking your project against the specific seismicity of the Canterbury region. This process ensures structural engineers receive a defensible, code-compliant design basis that directly addresses the ground realities unique to Christchurch.
